Designing a functional kitchen starts with understanding the intricate relationship between space and movement. Every inch matters when you are navigating between a hot stove and a heavy refrigerator. If the dimensions are slightly off, the entire workflow of your home can feel clunky and frustrating. Proper planning ensures that you have enough room for food preparation, appliance clearance, and social interaction. Whether you are building from scratch or renovating an existing space, adhering to industry standards provides a blueprint for comfort and safety. Let’s explore the essential measurements that transform a chaotic cooking area into a balanced, professional-grade culinary workspace that serves your family perfectly for years to come.

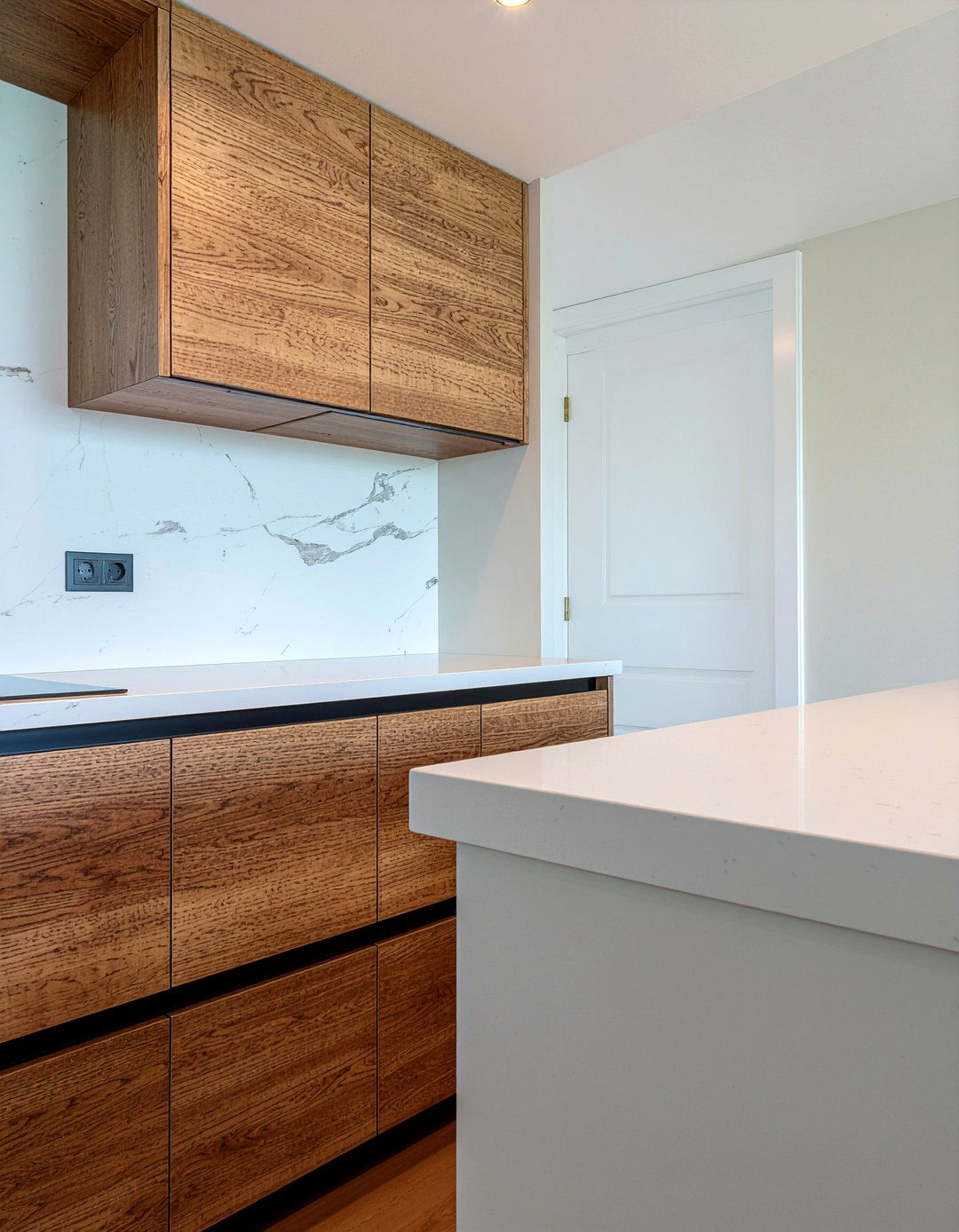

1. Standard base cabinet depth
Have you ever wondered why standard kitchen counters feel just right for your arm reach? Most base cabinets are built with a depth of 24 inches to accommodate the average human reach and standard appliance sizes. When you add the countertop overhang, the total depth usually reaches 25 or 25.5 inches. This specific measurement is crucial because it allows for deep enough storage for pots and pans while ensuring you can still reach the back of the counter without straining. Maintaining this consistency across your kitchen layout ensures that your dishwasher and stove sit flush with the cabinetry for a sleek, integrated look that defines modern interior styling.

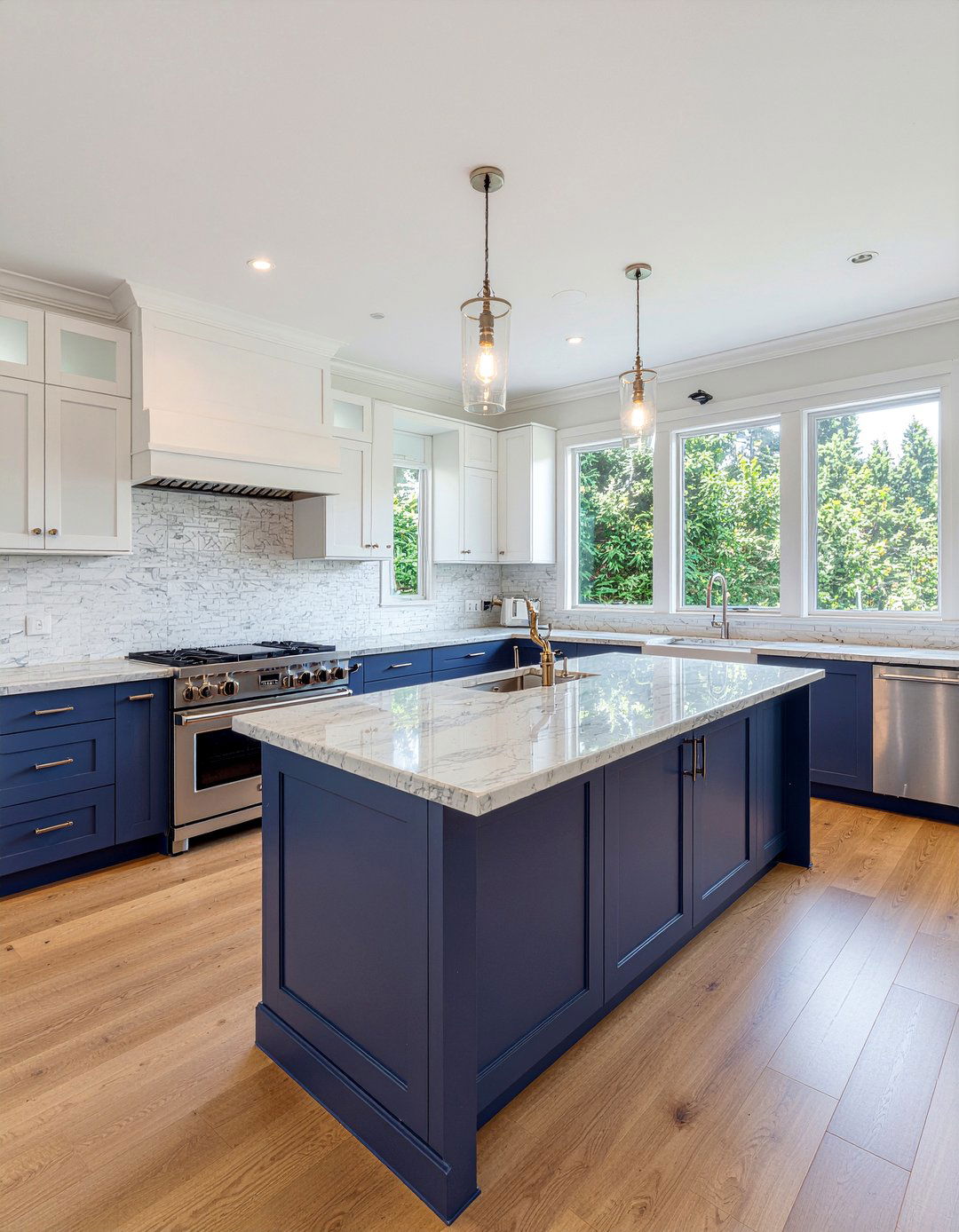

2. Kitchen island clearance
Walking through a kitchen should feel effortless rather than like navigating an obstacle course. For a kitchen island to be functional, you need a minimum clearance of 36 inches on all sides to allow for comfortable movement. However, if your kitchen is a high-traffic zone where multiple people cook at once, increasing that gap to 42 or even 48 inches is highly recommended. This extra space ensures that cabinet doors and appliance drawers can open fully without hitting the island. Proper clearance prevents the room from feeling cramped and allows for a natural flow of traffic between the cooking, cleaning, and food storage zones.

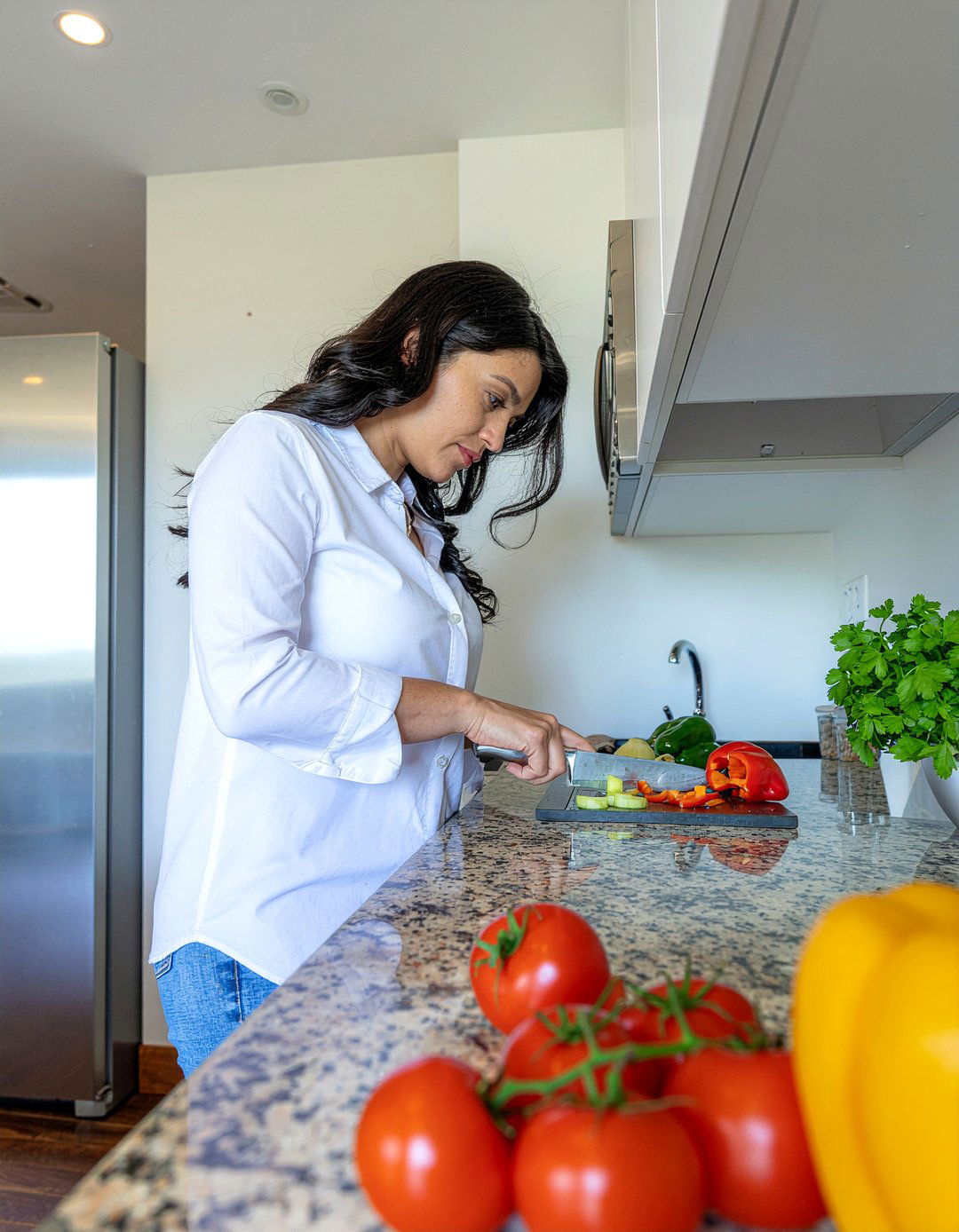

3. Countertop height standards
The height of your work surface can significantly impact your physical comfort during long meal preparation sessions. The industry standard for kitchen countertop height is 36 inches from the finished floor to the top of the counter surface. This height is designed to accommodate the average person, allowing for a comfortable elbow angle while chopping vegetables or kneading dough. If you are exceptionally tall or short, you might consider custom heights, but sticking to 36 inches is best for resale value. This standard height also perfectly aligns with most pre-manufactured base cabinets and standard slide-in ranges, creating a continuous and visually appealing horizontal line throughout the room.
4. Upper cabinet height
Where should you mount your wall cabinets to ensure they are both accessible and out of the way? Typically, upper cabinets are installed 18 inches above the countertop surface. This gap provides enough vertical space for small appliances like blenders and coffee makers to sit on the counter while keeping the cabinet contents within easy reach for most adults. If you choose to hang them higher, you might need a step stool, whereas hanging them lower can make the workspace feel dark and claustrophobic. Finding this balance is key to maintaining a functional backsplash area and ensuring that your kitchen feels open and well-proportioned for daily use.
5. Walkway width between counters
Imagine trying to pass a family member in a narrow galley kitchen while carrying a hot tray of cookies. To avoid collisions, the primary walkways in a kitchen should be at least 36 inches wide. In work zones where two people might be working back-to-back, such as between an island and a perimeter counter, a width of 48 inches is the gold standard. This allows one person to stand at the sink while another passes behind them comfortably. Adequate walkway width is not just about convenience; it is a vital safety feature that prevents accidents in a busy environment filled with sharp knives and hot surfaces.
6. Kitchen work triangle
The concept of the work triangle has been the cornerstone of efficient kitchen design for decades. This imaginary triangle connects the three main work centers: the sink, the cooktop, and the refrigerator. For maximum efficiency, each leg of the triangle should be between 4 and 9 feet long. The total sum of all three legs should not exceed 26 feet. This specific dimensioning ensures that the workstations are close enough to reduce unnecessary steps but far enough apart to prevent the workspace from feeling crowded. A well-measured work triangle streamlines the cooking process, making it much easier to move between tasks without wasting time or energy.

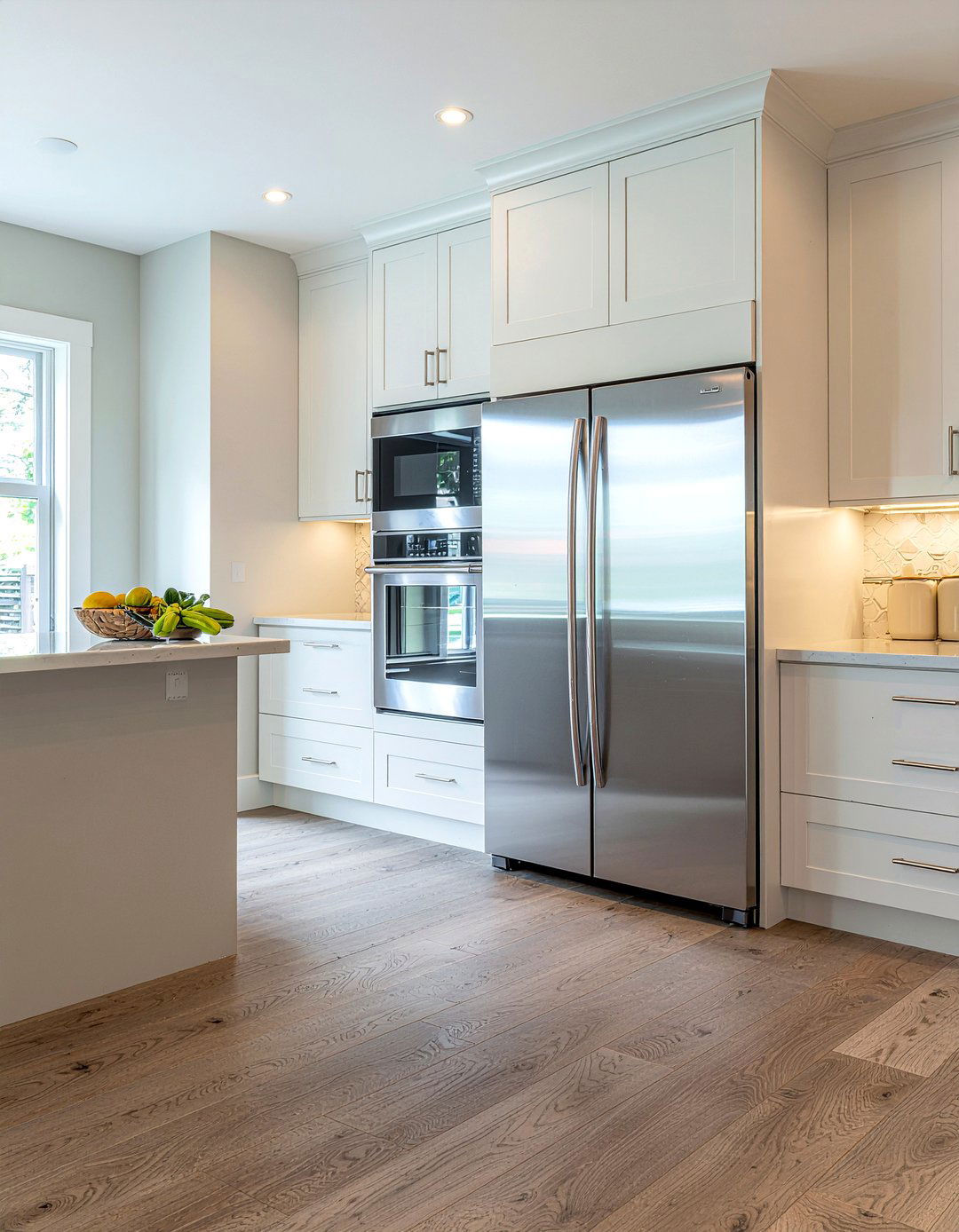

7. Refrigerator clearance space
A common mistake in kitchen planning is forgetting how much space a refrigerator actually needs to function. Beyond the physical dimensions of the unit, you must account for the door swing and the depth of the handles. Most refrigerators require at least 2 inches of clearance behind them for proper ventilation and airflow. Additionally, if the fridge is placed next to a wall, you often need 3 to 6 inches of space on the hinge side so the door can open wide enough to pull out internal crisper drawers. Measuring these clearances accurately ensures your appliance operates efficiently and remains fully accessible for cleaning and daily food retrieval.

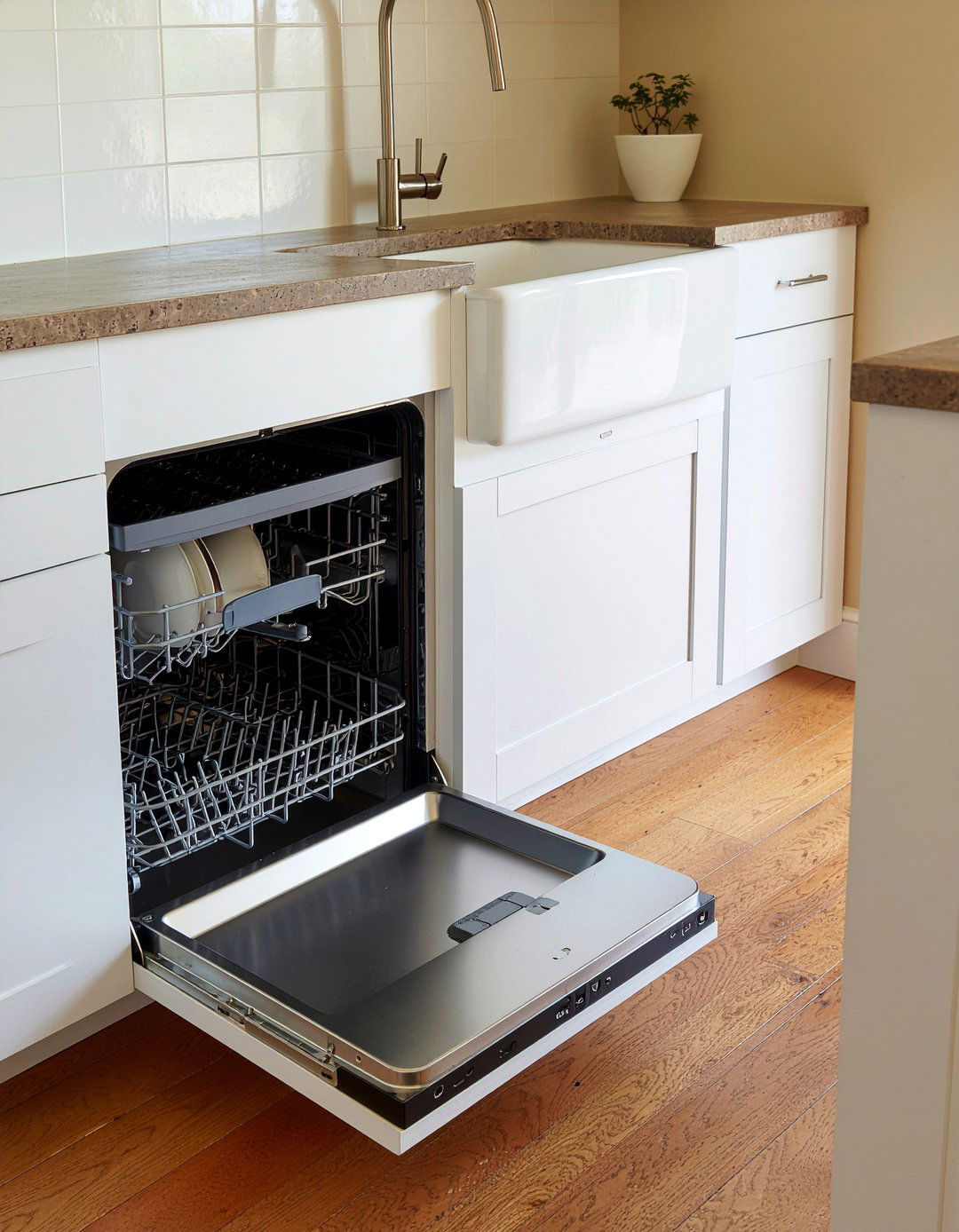

8. Dishwasher placement dimensions
Where you place your dishwasher is just as important as the space it occupies. Ideally, a dishwasher should be located within 36 inches of the edge of the main sink. This proximity makes it easy to rinse dishes and load them immediately without dripping water across the floor. When the dishwasher door is fully open, there should still be at least 21 inches of standing room between the edge of the door and any opposite cabinets or walls. This ensures that you can move around the open appliance while unloading. Proper placement and clearance dimensions make the cleanup process faster and much more ergonomic for the user.

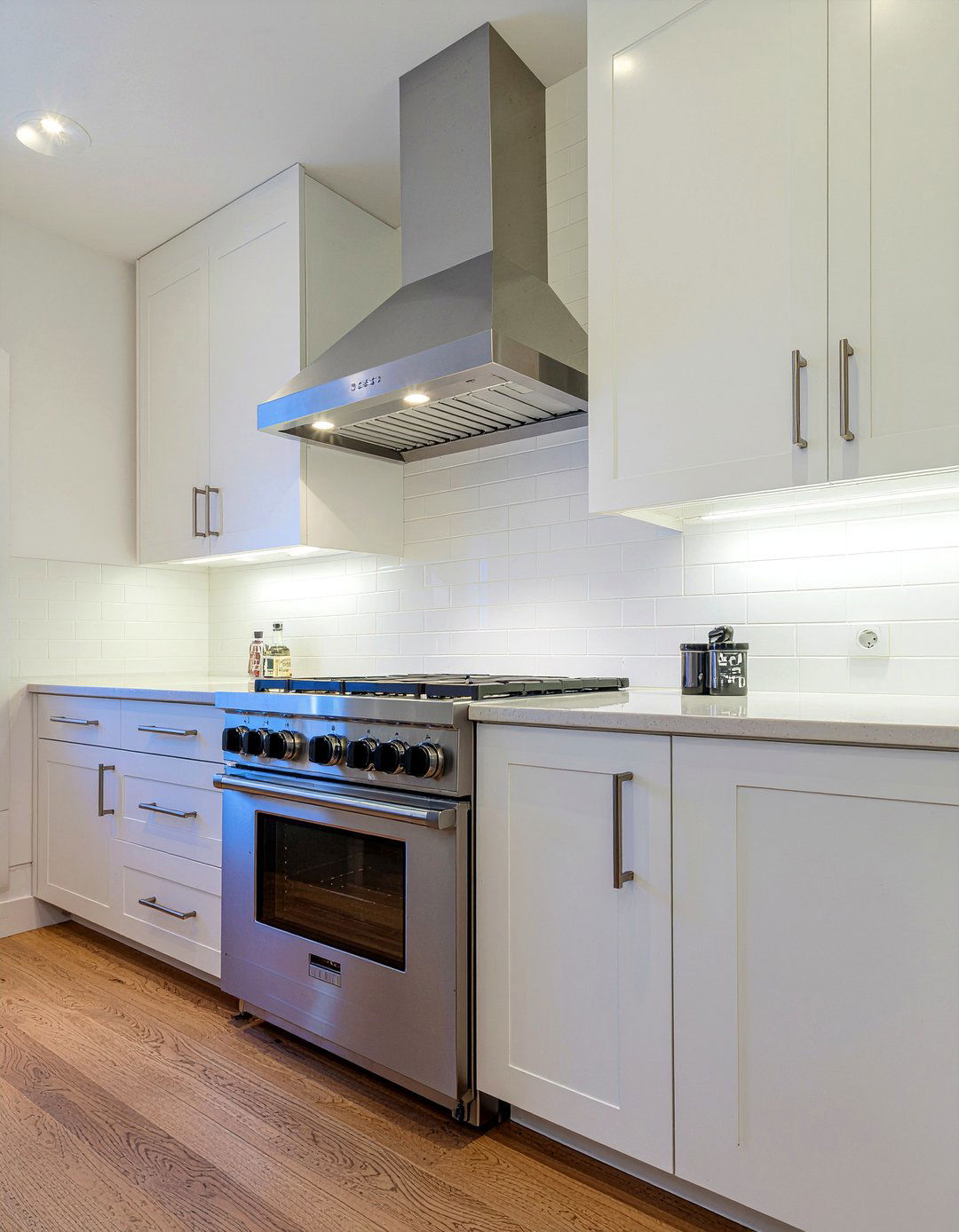

9. Range hood height above stove
Safety and ventilation efficiency depend heavily on the vertical distance between your cooktop and the range hood. For standard electric or gas ranges, the hood should be mounted between 24 and 30 inches above the cooking surface. If the hood is placed too high, it won't effectively capture smoke, grease, and odors; if it is too low, it can become a fire hazard or obstruct your view of the back burners. Professional-grade high-BTU gas ranges often require a higher clearance of 30 to 36 inches. Always check the manufacturer's specifications to ensure your hood is positioned for optimal performance and safety in your specific kitchen setup.

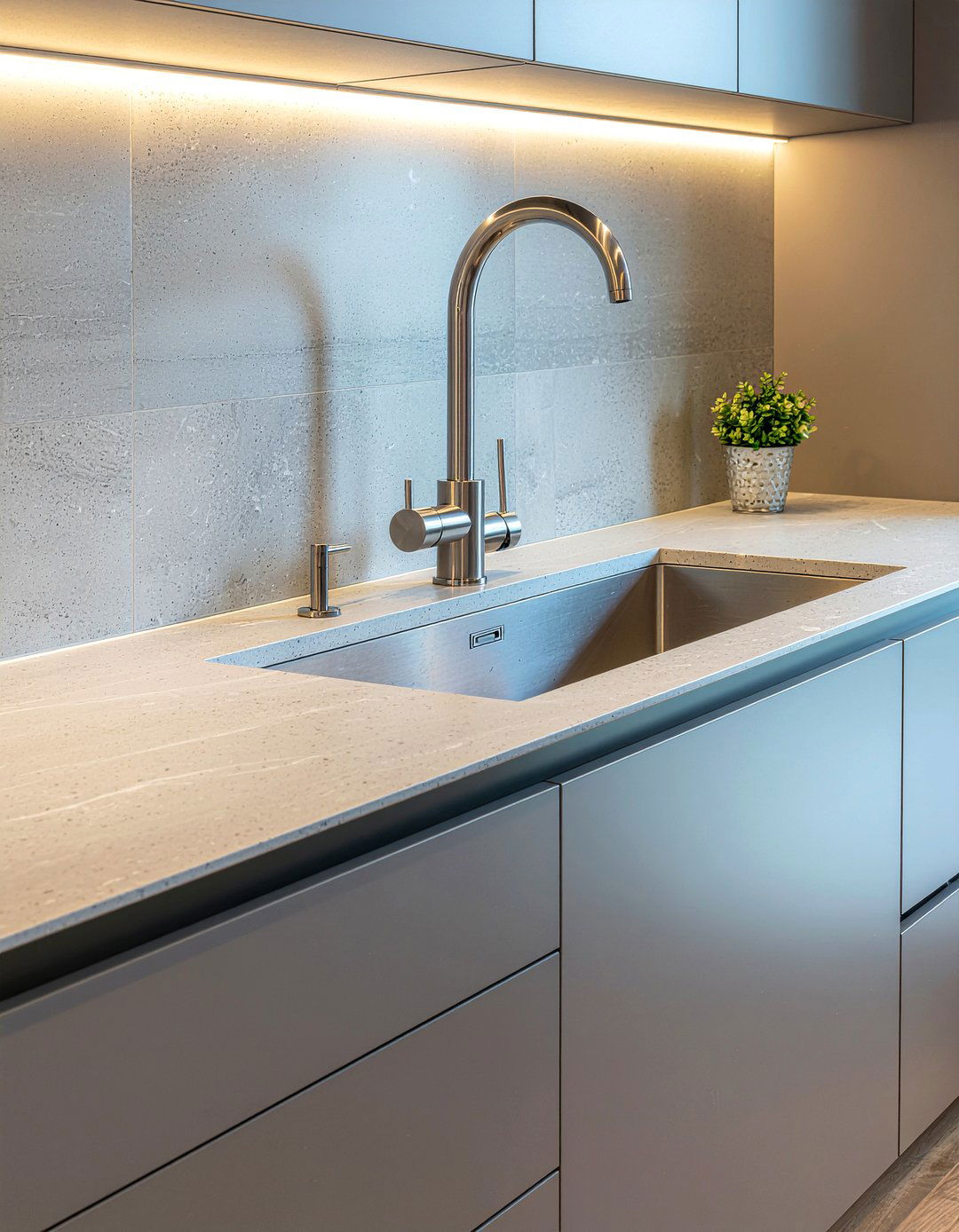

10. Sink width and depth
Choosing the right sink dimensions is vital for handling your largest pots and pans with ease. A standard single-bowl kitchen sink usually measures between 22 and 33 inches in width. The depth is equally important, with most modern sinks being 8 to 10 inches deep. A deeper sink is excellent for hiding dirty dishes and preventing splashes, but it can be harder on your back if you are tall. When planning the sink area, ensure the cabinet below is at least 3 inches wider than the sink itself to allow for proper mounting hardware. These dimensions ensure that your primary cleaning zone is functional, durable, and comfortable for daily tasks.
11. Pantry shelf spacing
Organizing a pantry requires a strategic approach to shelf height to accommodate everything from tall cereal boxes to small spice jars. For general food storage, a distance of 10 to 12 inches between shelves is usually sufficient for standard cans and boxes. However, including at least one or two shelves with 14 to 16 inches of clearance is wise for bulk items or small appliances. Deep shelves, typically 16 to 20 inches, are great for lower levels, while upper shelves should be shallower, around 10 to 12 inches, to prevent items from getting lost in the back. Customizing these dimensions allows you to maximize every cubic inch of your storage space.

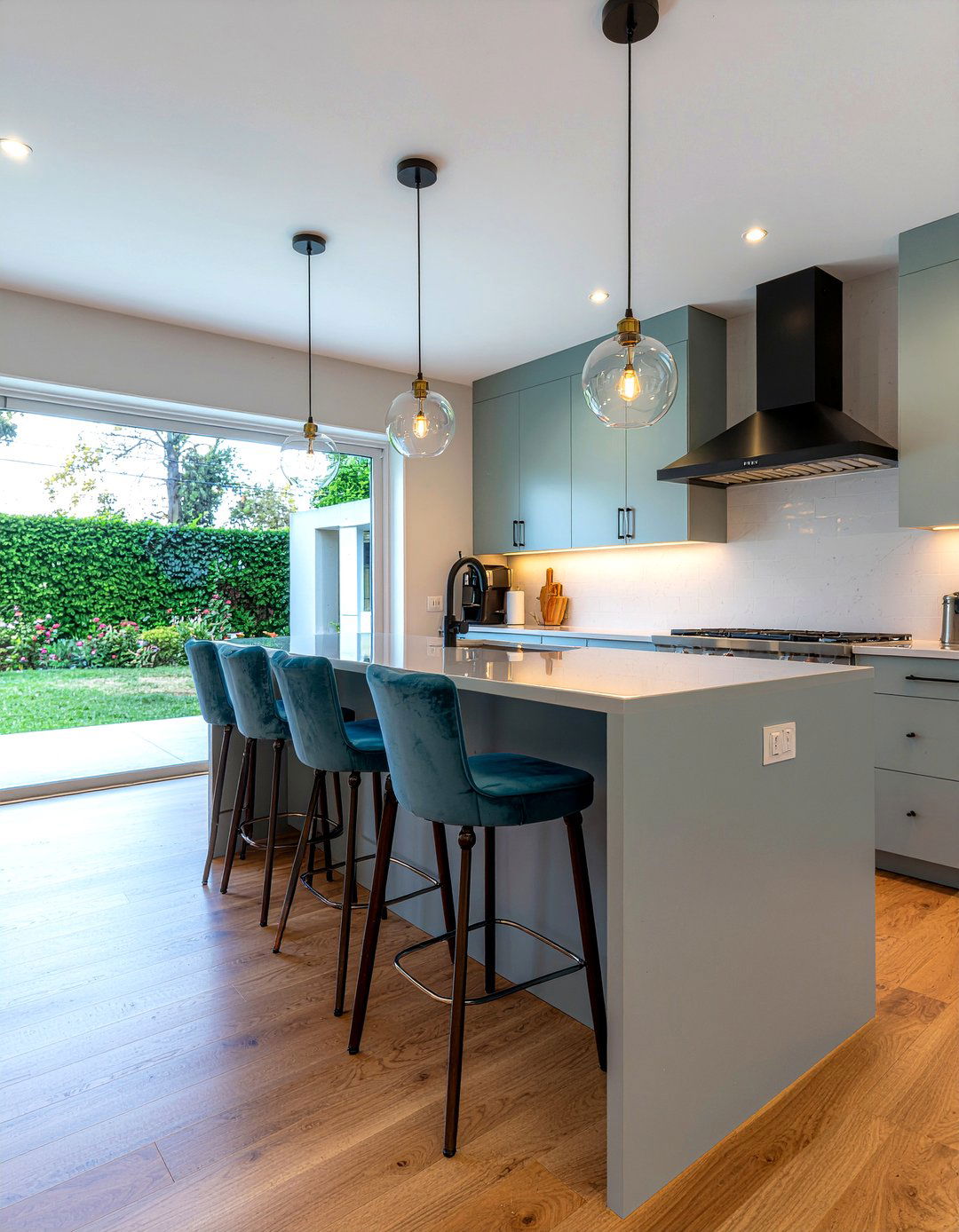

12. Bar stool seating height
If you plan to have a seating area at your kitchen island, the height of your stools must match the counter height. For a standard 36-inch high counter, you will need "counter-height" stools, which typically have seats 24 to 26 inches high. This provides about 10 to 12 inches of legroom between the seat and the underside of the counter. If you have a raised breakfast bar at 42 inches, you will need "bar-height" stools with seats 28 to 30 inches high. Getting these dimensions right ensures that your family and guests can sit comfortably without their knees hitting the counter or feeling like they are sitting too low.

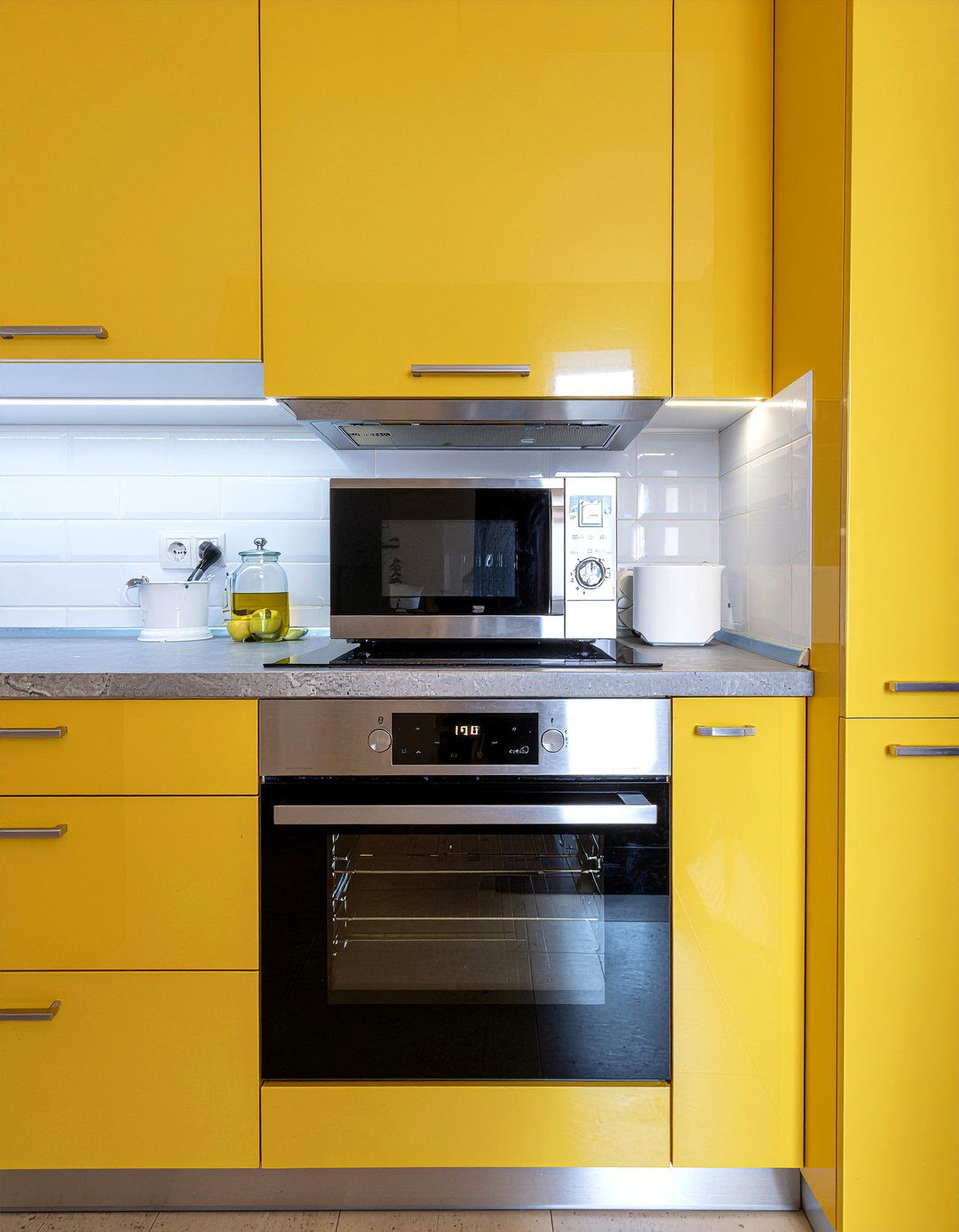

13. Microwave cabinet dimensions
Microwaves come in various sizes, so the cabinet housing them must be sized correctly for both the unit and ventilation. A standard built-in microwave cabinet is usually 24 to 30 inches wide. The interior depth should be at least 18 to 20 inches to accommodate the unit and the power plug behind it. It is also important to leave about 1 to 2 inches of space around the sides and top for heat dissipation unless the model is specifically designed for a flush trim kit. Placing the microwave at a height of 3 inches below shoulder level is considered the most ergonomic and safest dimension for lifting hot heavy containers out.

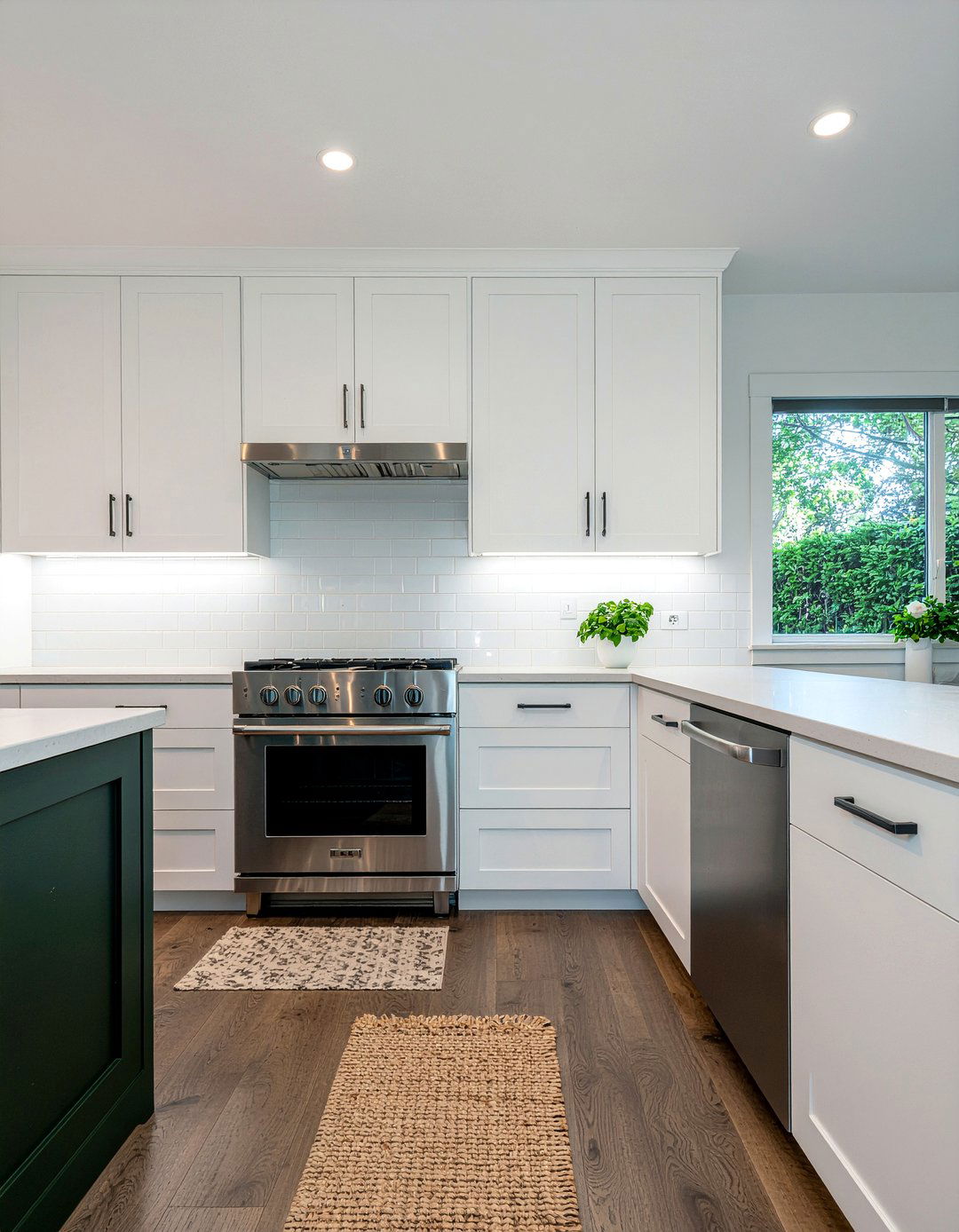

14. Backsplash height requirements
The backsplash serves as both a decorative element and a protective barrier for your walls. The standard height for a full backsplash is the distance between the countertop and the bottom of the upper cabinets, which is typically 18 inches. In areas without upper cabinets, such as behind a range or sink, many homeowners choose to extend the backsplash to the ceiling or at least 24 to 30 inches high to create a focal point. A minimum 4-inch "short" backsplash is often used if a full wall treatment isn't desired. These dimensions ensure that your walls are protected from moisture and grease while enhancing the overall aesthetic of the kitchen.

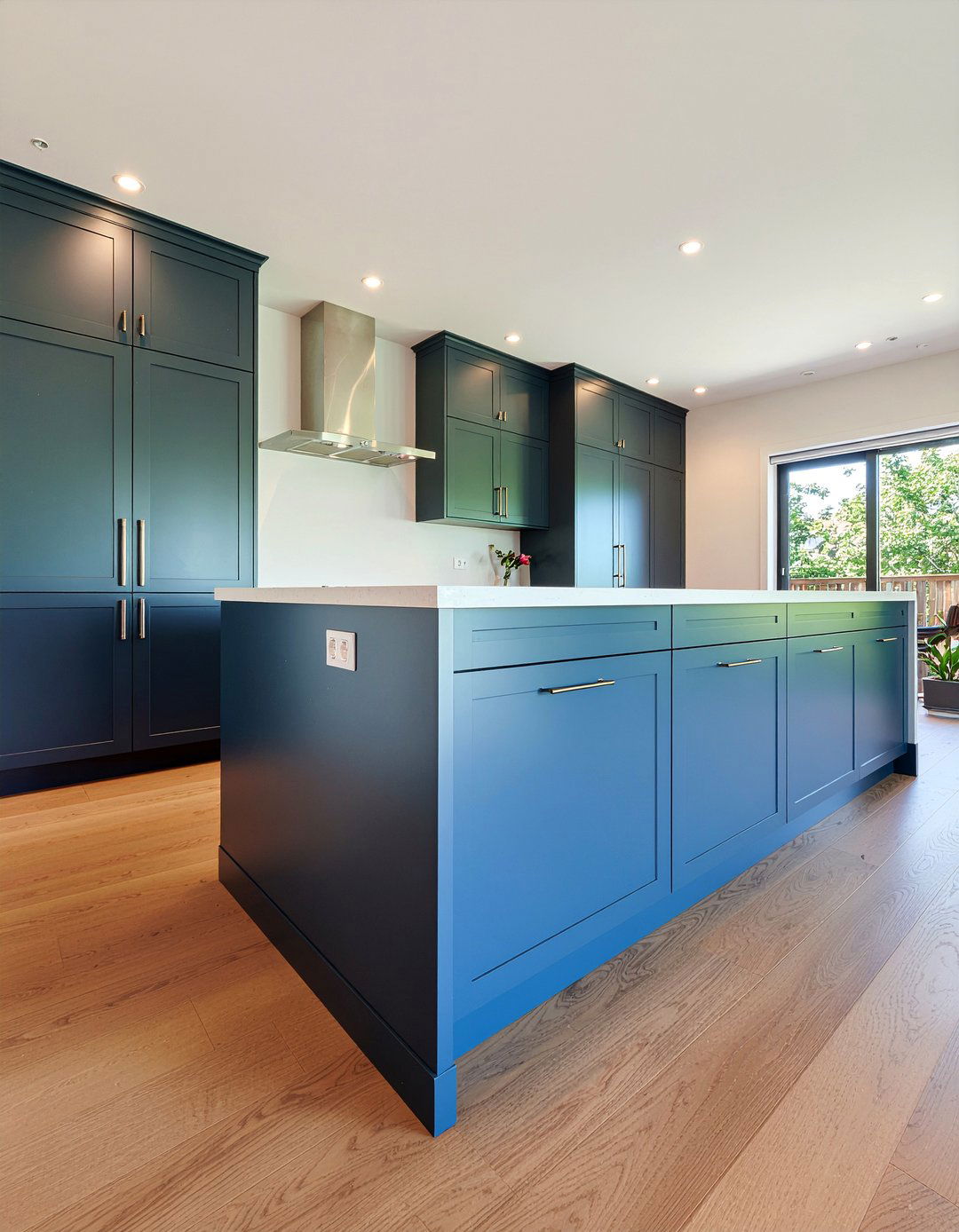

15. Toe kick height and depth
The toe kick is the recessed area at the base of your bottom cabinets that allows you to stand close to the counter without stubbing your toes. The standard dimension for a toe kick is 4 inches high and 3 inches deep. This small but essential detail makes a massive difference in ergonomics, as it allows your feet to tuck slightly under the cabinet, letting you lean forward comfortably while working. If the toe kick is too shallow, you will find yourself leaning at an awkward angle, which can cause back pain over time. Maintaining these standard dimensions ensures a professional look and a comfortable working environment for everyone.
16. Corner cabinet dimensions
Corner cabinets are often the trickiest part of a kitchen layout because they require specific dimensions to remain functional. A standard "Lazy Susan" corner base cabinet usually occupies a square area of 36 inches by 36 inches along the walls. Blind corner cabinets, which extend into the corner from one side, typically require at least 42 to 48 inches of wall space. These dimensions are necessary to allow the internal rotating shelves or pull-out organizers to function without hitting the adjacent cabinet doors. Planning for these specific measurements ensures that you don't end up with "dead space" in the corners where items are forgotten and impossible to reach easily.

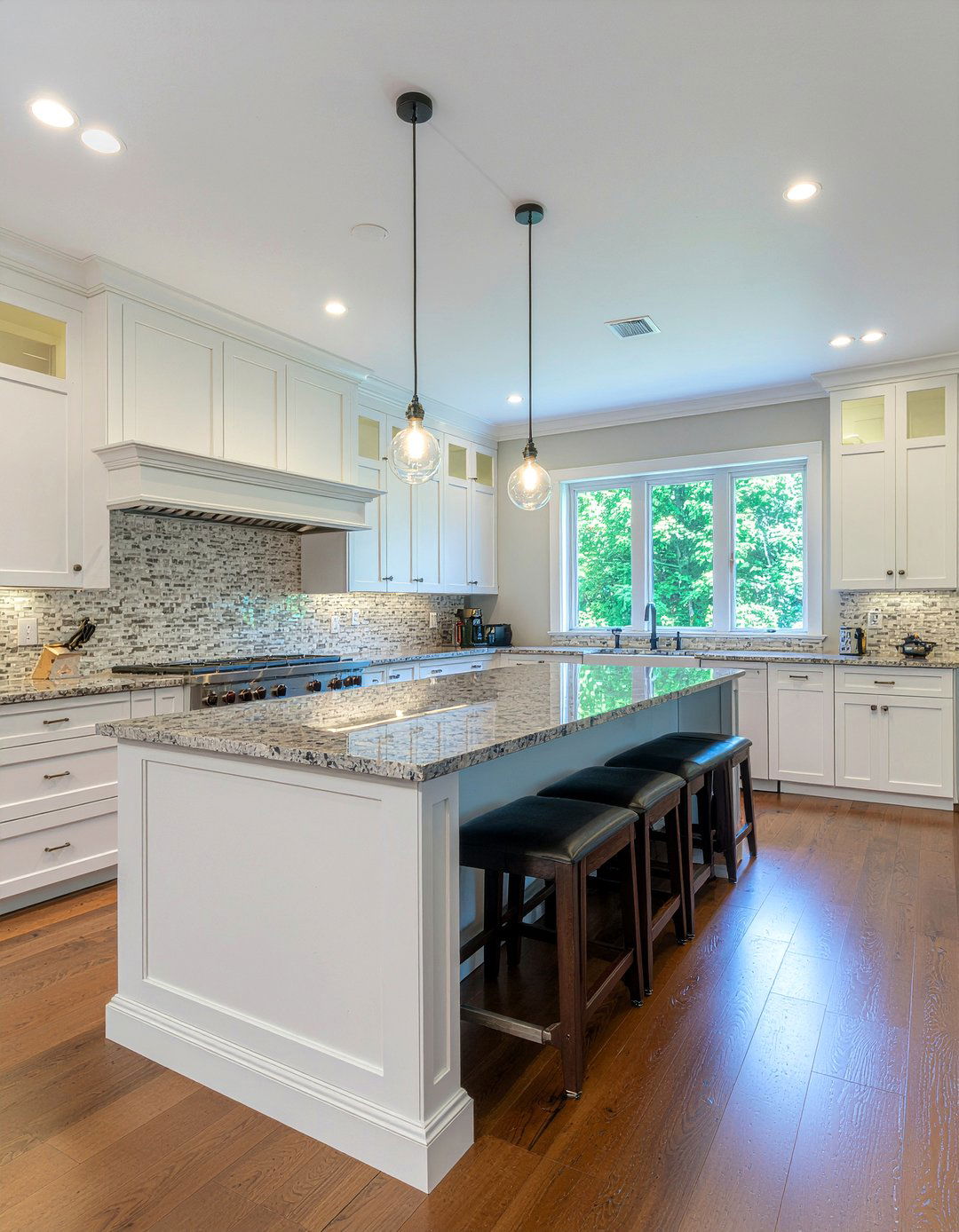

17. Kitchen island overhang for seating
When adding seating to an island, the depth of the countertop overhang is critical for leg comfort. For a standard 36-inch high counter, a minimum overhang of 12 inches is required for comfortable knee space. If you prefer more room, a 15-inch overhang is even better, especially for taller individuals. However, keep in mind that any overhang exceeding 10 to 12 inches usually requires additional support, such as brackets or corbels, to ensure the countertop material doesn't crack under pressure. Getting this dimension right transforms your island from a simple prep station into a welcoming social hub where people can actually sit and enjoy a meal comfortably.

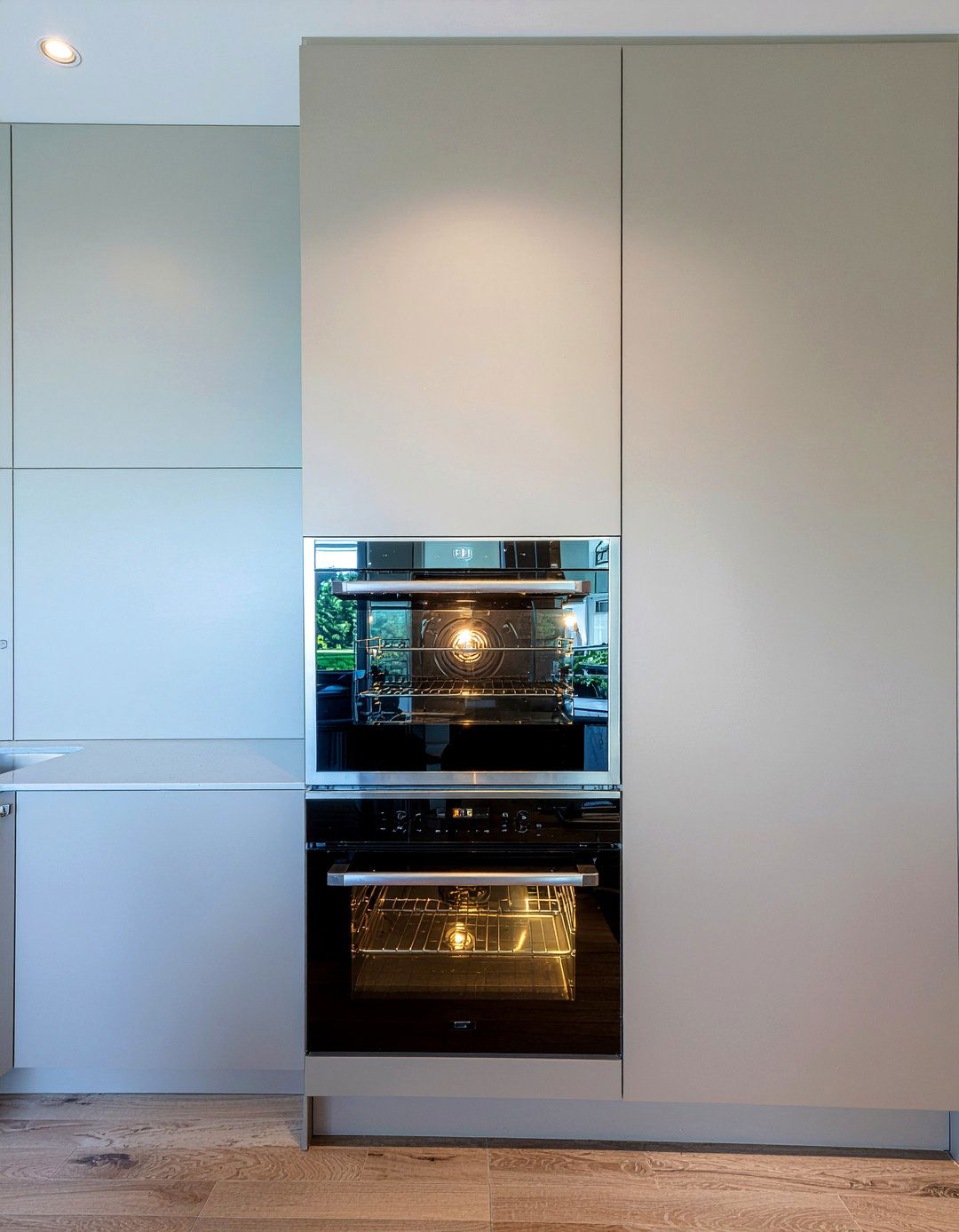

18. Double oven wall cabinet size
Installing a double wall oven requires a specific tall cabinet that can handle the weight and size of the appliance. Most double ovens are 27 or 30 inches wide, meaning the cabinet itself must be sized accordingly with a matching interior cutout. The vertical placement is also crucial; the center of the oven should ideally be at eye level or slightly below. Usually, the bottom oven starts about 12 to 24 inches from the floor. Ensuring the cabinet has reinforced shelving is vital, as double ovens are incredibly heavy. Correct dimensions here provide a sleek, integrated look while making it safer to move heavy roasts in and out of the oven.

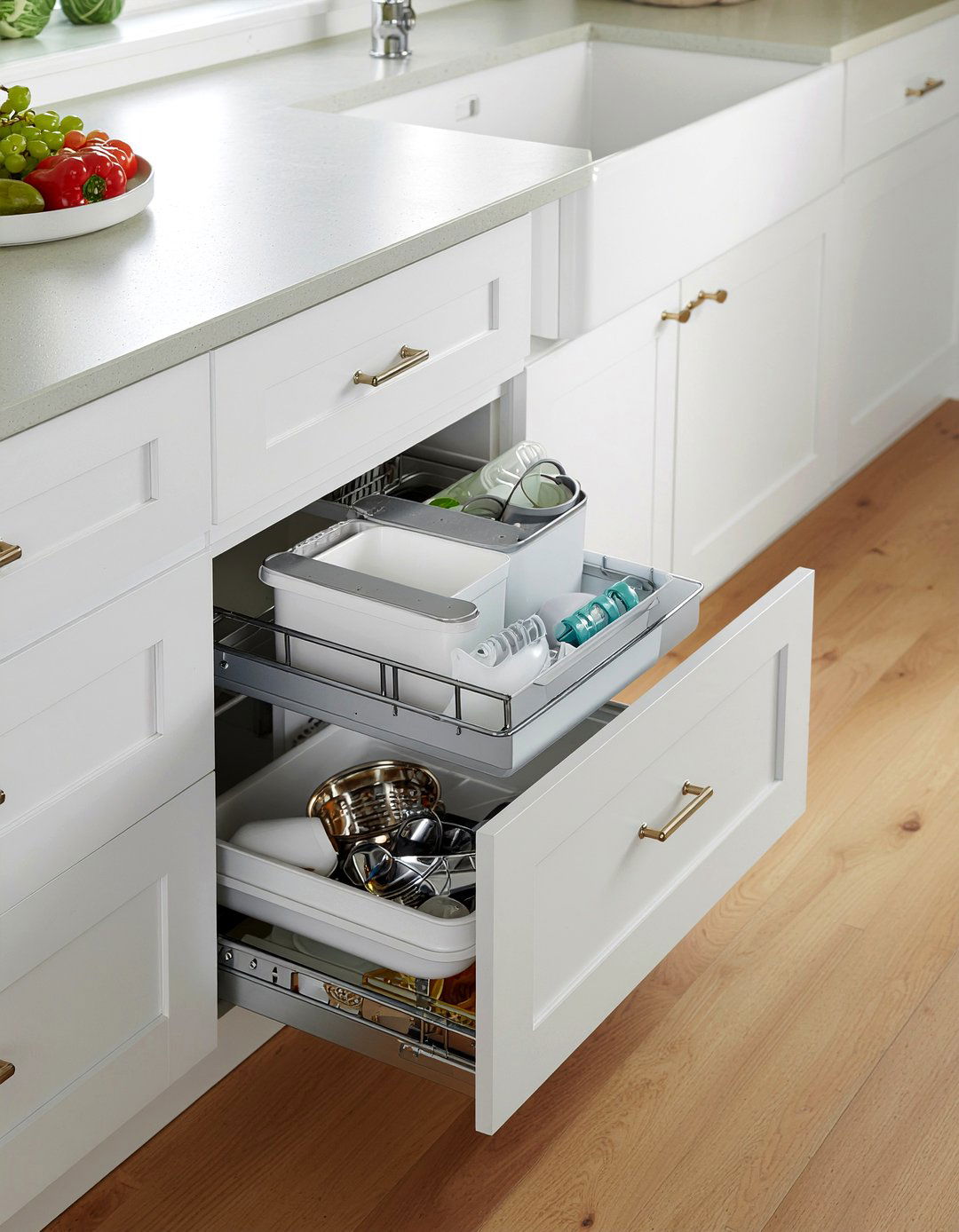

19. Trash pull out cabinet width
Integrating your waste bins into the cabinetry keeps the kitchen looking clean and smelling fresh. A standard trash pull-out cabinet is typically 15, 18, or 21 inches wide. A 15-inch cabinet usually holds one large bin, while an 18-inch or 24-inch version can accommodate two bins for easy sorting of trash and recycling. The depth is standard at 24 inches to match the rest of the base cabinets. Placing this cabinet near the sink or the main prep area is the most efficient choice. These dimensions ensure that your waste management is hidden from view but remains highly accessible during food preparation and the post-dinner cleanup process.

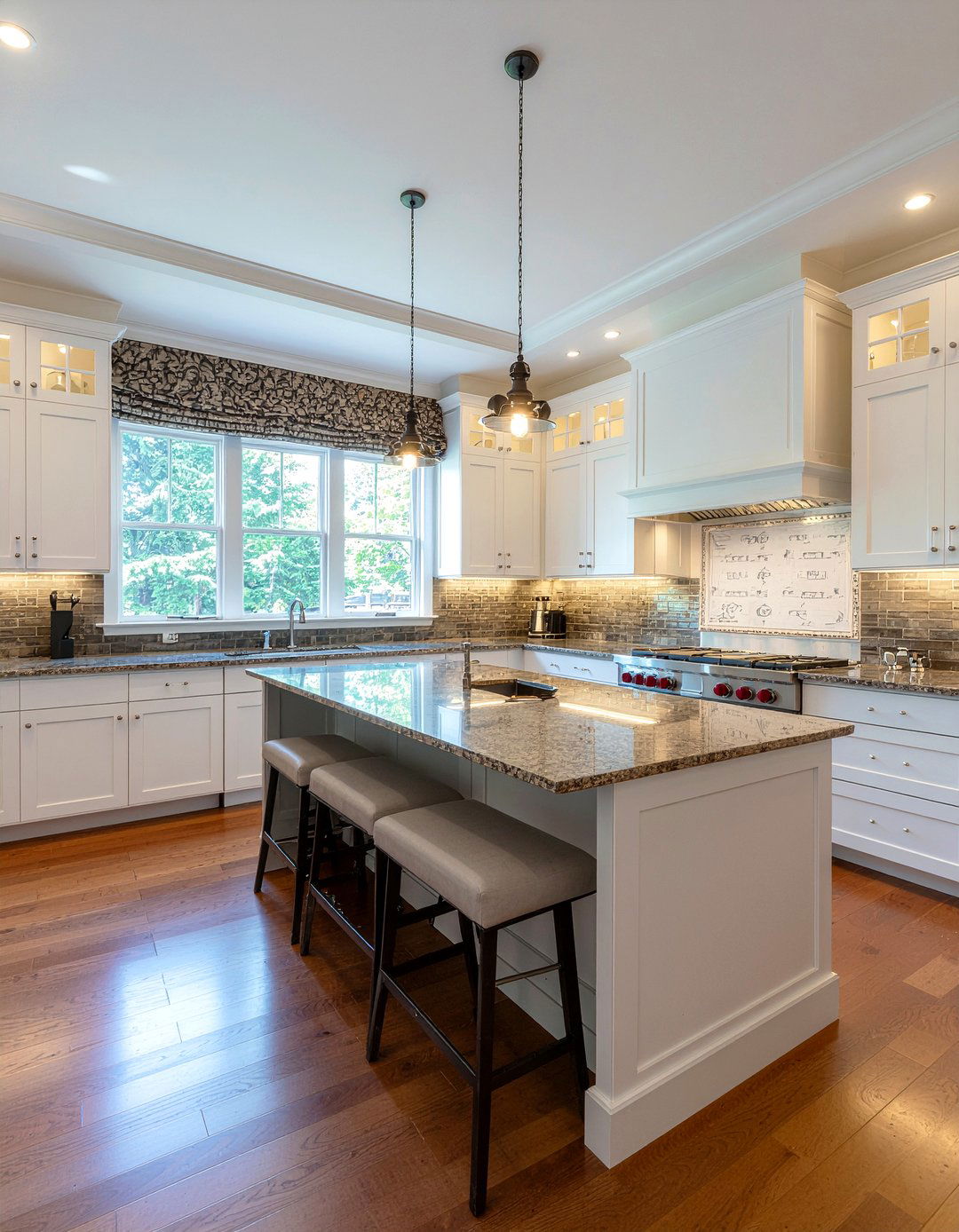

20. Ceiling height for tall cabinets
The height of your ceiling dictates how you should handle the top of your cabinetry. For standard 8-foot ceilings, many designers use 30-inch or 36-inch tall upper cabinets with a decorative crown molding to bridge the gap to the ceiling. If you have 9-foot or 10-foot ceilings, you might opt for 42-inch cabinets or even "stacked" cabinets to fill the vertical space. Leaving a gap between the top of the cabinets and the ceiling can create a shelf for decor, but it also collects dust. Choosing cabinet heights that correspond correctly with your ceiling dimensions creates a custom, high-end look that makes the entire kitchen feel more grand and spacious.

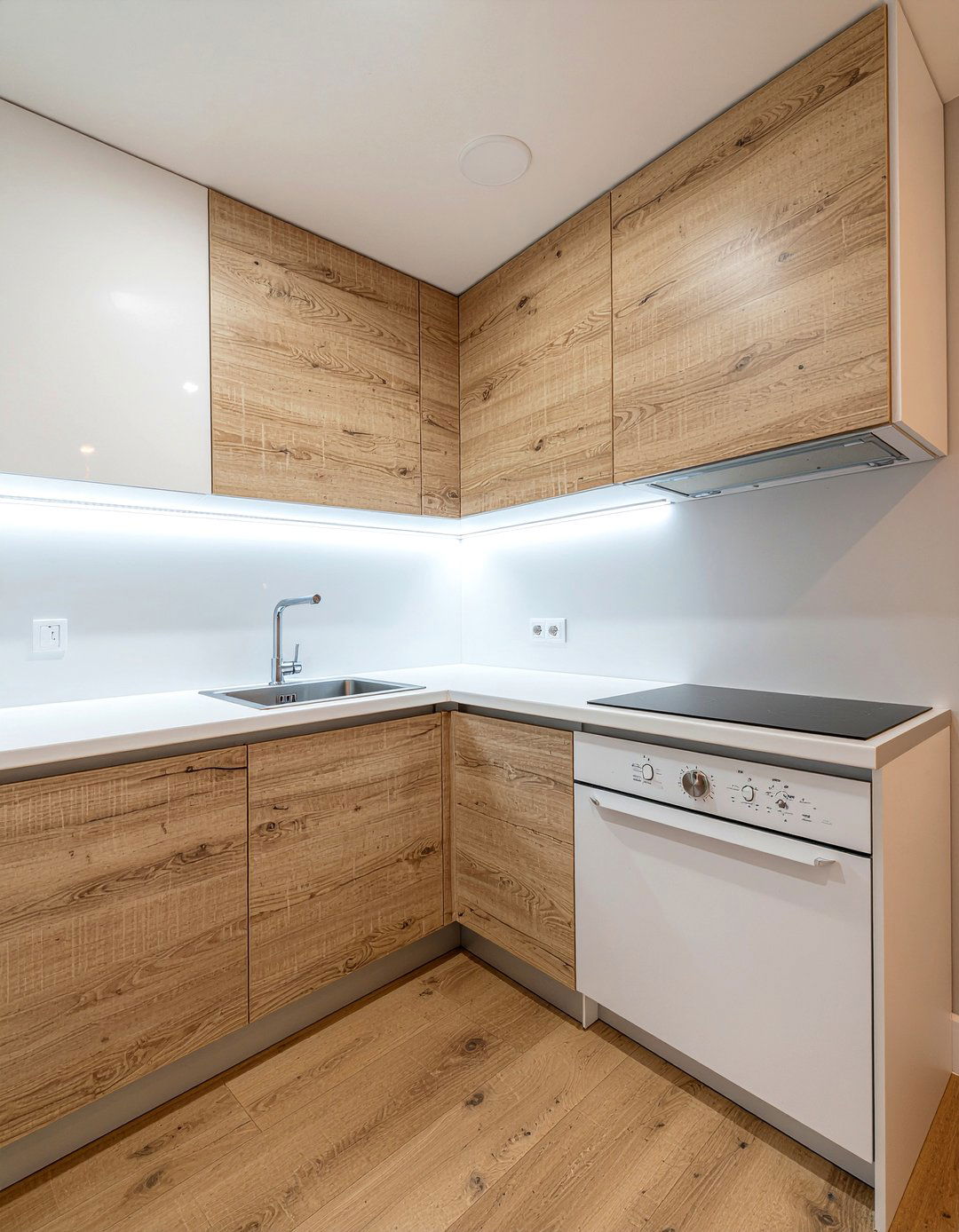

21. Small kitchen layout dimensions
In a small kitchen, every centimeter must be utilized with extreme precision to avoid a cramped feeling. For a tiny U-shaped or galley layout, the central aisle should still try to maintain a 36-inch width, even if it means using slightly shallower base cabinets. Using "apartment-sized" appliances, such as a 24-inch wide refrigerator or range instead of the standard 30-inch models, can save valuable space. Compact layouts often rely on vertical storage, so extending cabinets to the ceiling is essential. By sticking to these tight but functional dimensions, you can create a highly efficient cooking environment that feels much larger and more organized than its actual square footage suggests.

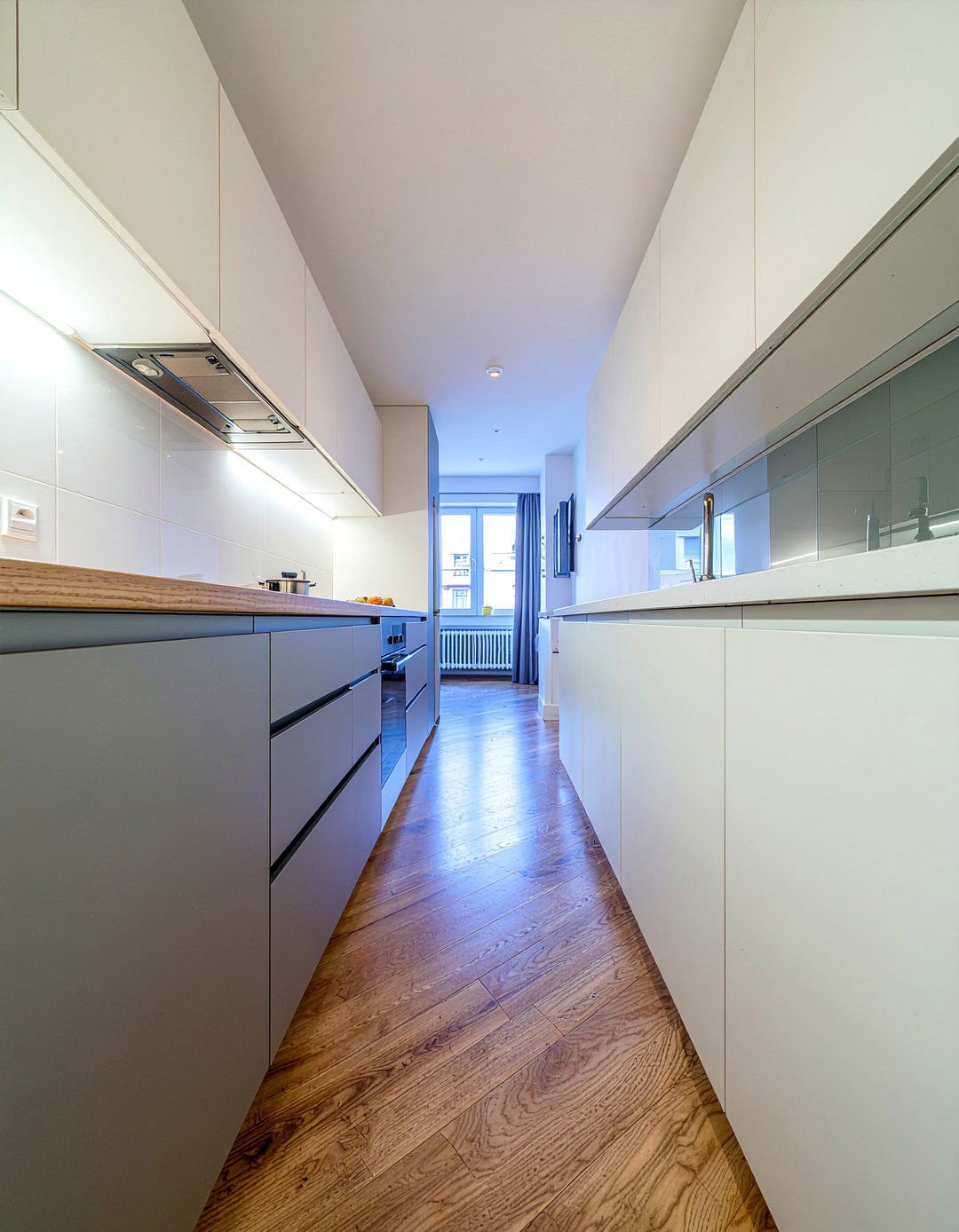

22. Galley kitchen aisle width
Galley kitchens are prized for their efficiency, but their success depends entirely on the width of the central aisle. The minimum recommended width for a single-cook galley aisle is 36 inches. However, if two people frequently share the space, 48 inches is necessary to prevent bumping into one another. You must also consider the depth of the appliances when they are open; a dishwasher or oven door can easily block a 36-inch aisle completely. Ensuring you have enough width allows for a smooth work flow between the two parallel counters, making the galley layout one of the most professional and ergonomic configurations for serious home chefs.

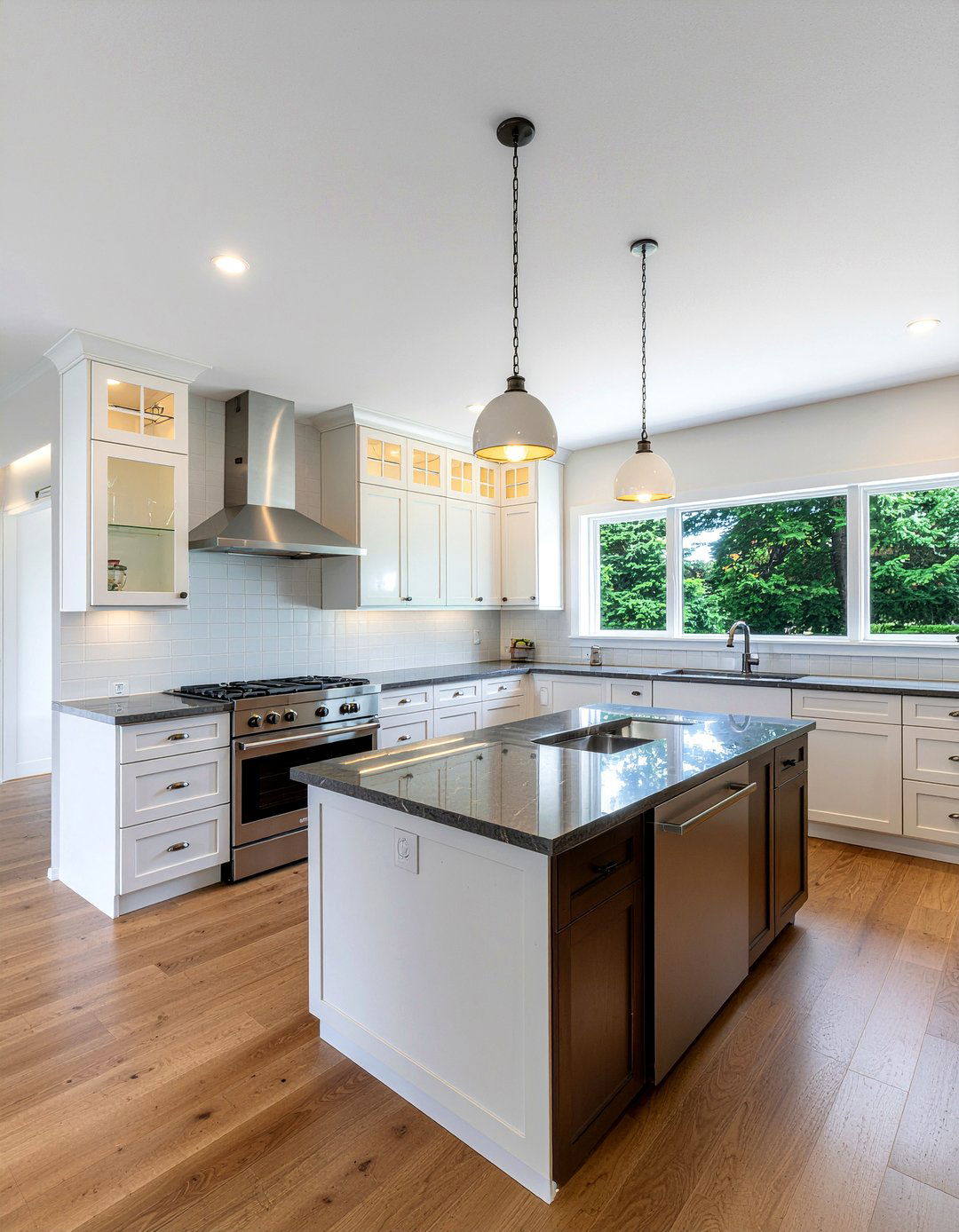

23. L shaped kitchen measurements
The L-shaped kitchen is one of the most versatile layouts, but it requires careful dimensioning of the legs to work well. One leg usually contains the sink and dishwasher, while the other holds the range and refrigerator. To maintain efficiency, neither leg should be shorter than 8 feet or longer than 15 feet. If the legs are too long, the distance between the sink and fridge becomes tiring; if they are too short, you lack adequate counter space for preparation. This layout often benefits from an island in the center, provided there is at least 36 to 42 inches of clearance around all sides of the L-shape.

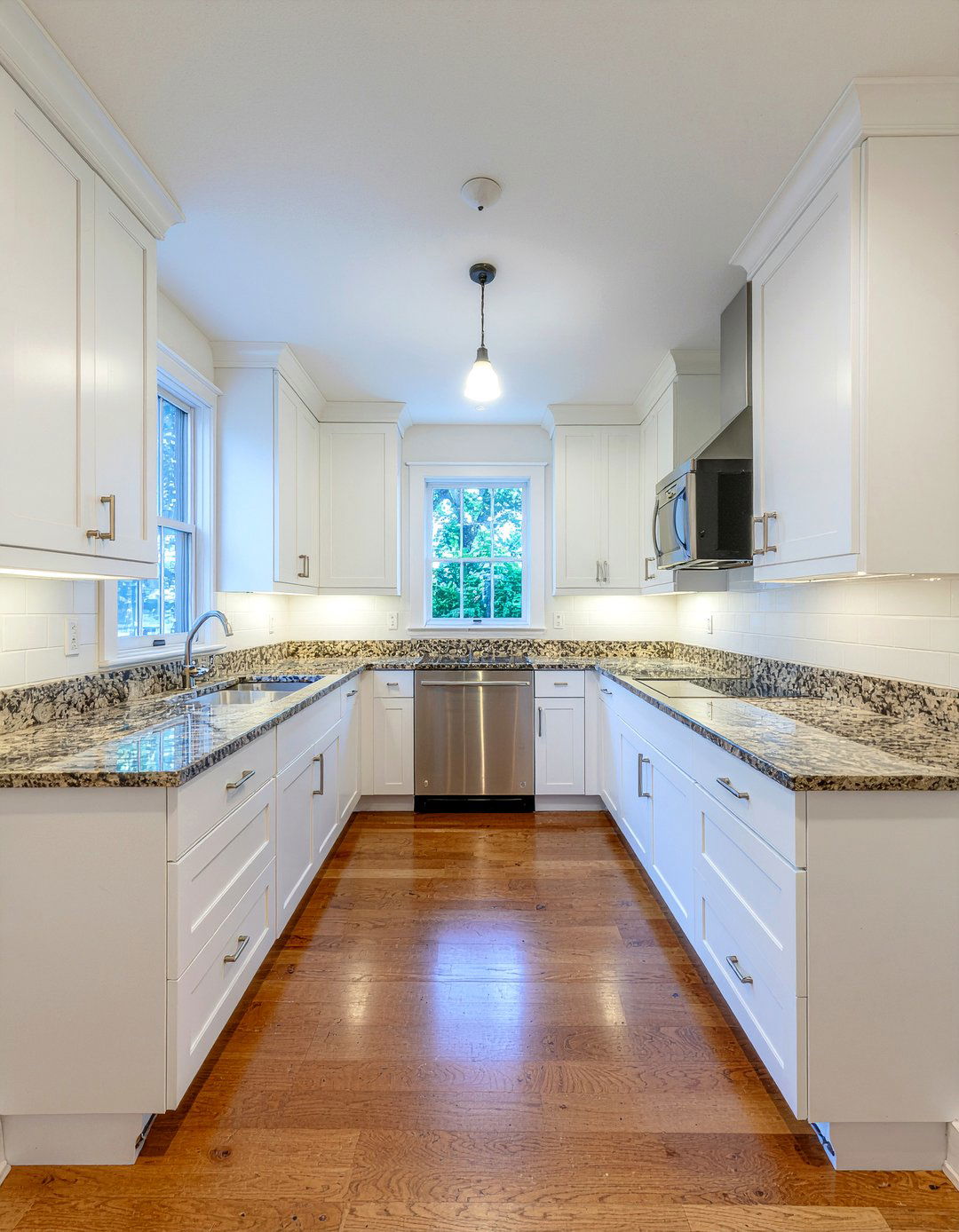

24. U shaped kitchen clearance
A U-shaped kitchen offers an incredible amount of counter space, but the center area must be sized correctly. The distance between the two opposing arms of the U should be at least 42 to 60 inches. If the gap is less than 42 inches, the kitchen will feel claustrophobic and difficult for more than one person to use. If the gap is wider than 6 feet, the kitchen becomes inefficient because you have to walk too far between the different work zones. Finding the sweet spot in these dimensions ensures that you have maximum storage and workspace without sacrificing the comfort of movement within the room.

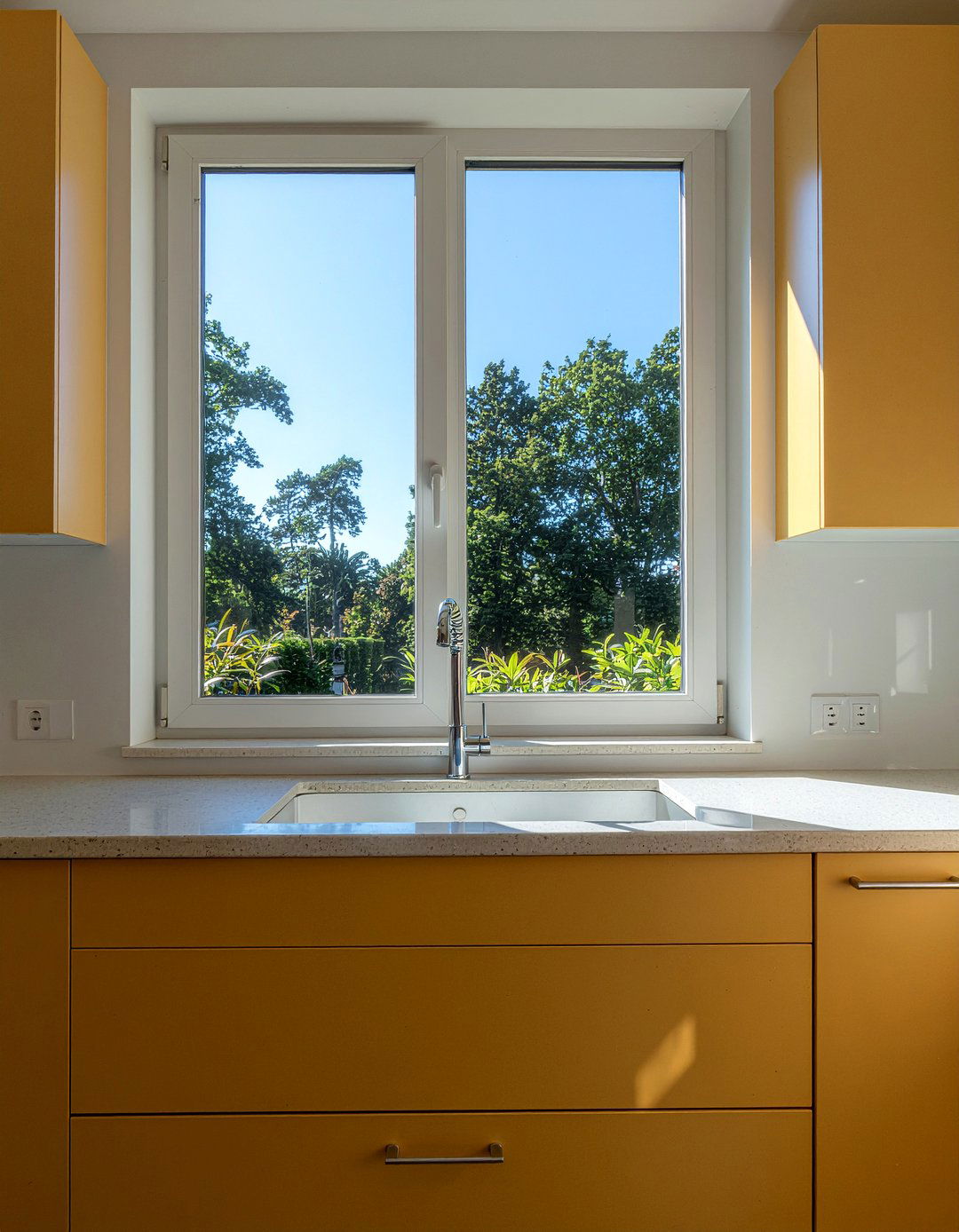

25. Kitchen window height above counter
Placing a window above the kitchen sink is a classic design choice that provides natural light and a view while washing dishes. The standard height for a windowsill above the countertop is usually 2 to 4 inches. This allows for a small backsplash area to protect the window casing from water splashes. The window itself should be centered over the sink for visual symmetry. In terms of overall height, the top of the window usually aligns with the top of the upper cabinets or the door frames in the room, typically at 80 or 84 inches from the floor. These dimensions create a cohesive and bright atmosphere.

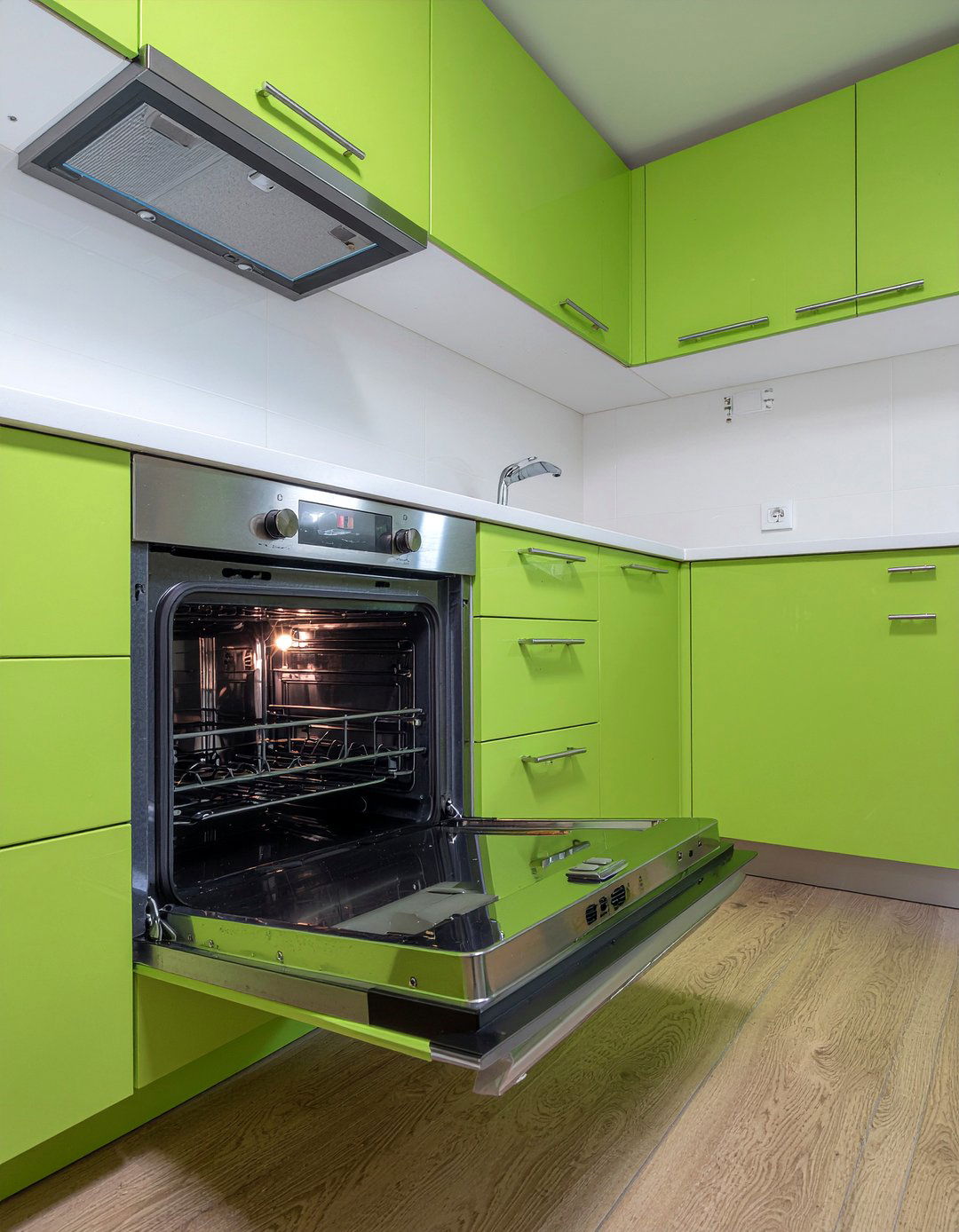

26. Appliance door swing clearance
One of the most overlooked aspects of kitchen dimensioning is the space required for appliance doors to swing open fully. A standard oven door needs about 21 to 22 inches of clear space in front of it when open. A dishwasher door requires about 24 to 26 inches. If these appliances are placed across from each other or near an island, their swing zones can overlap, causing major traffic jams. Always map out these arcs during the planning phase to ensure that you can stand in front of an open appliance without being pinned against a wall or another cabinet. Proper clearance is essential for functionality.

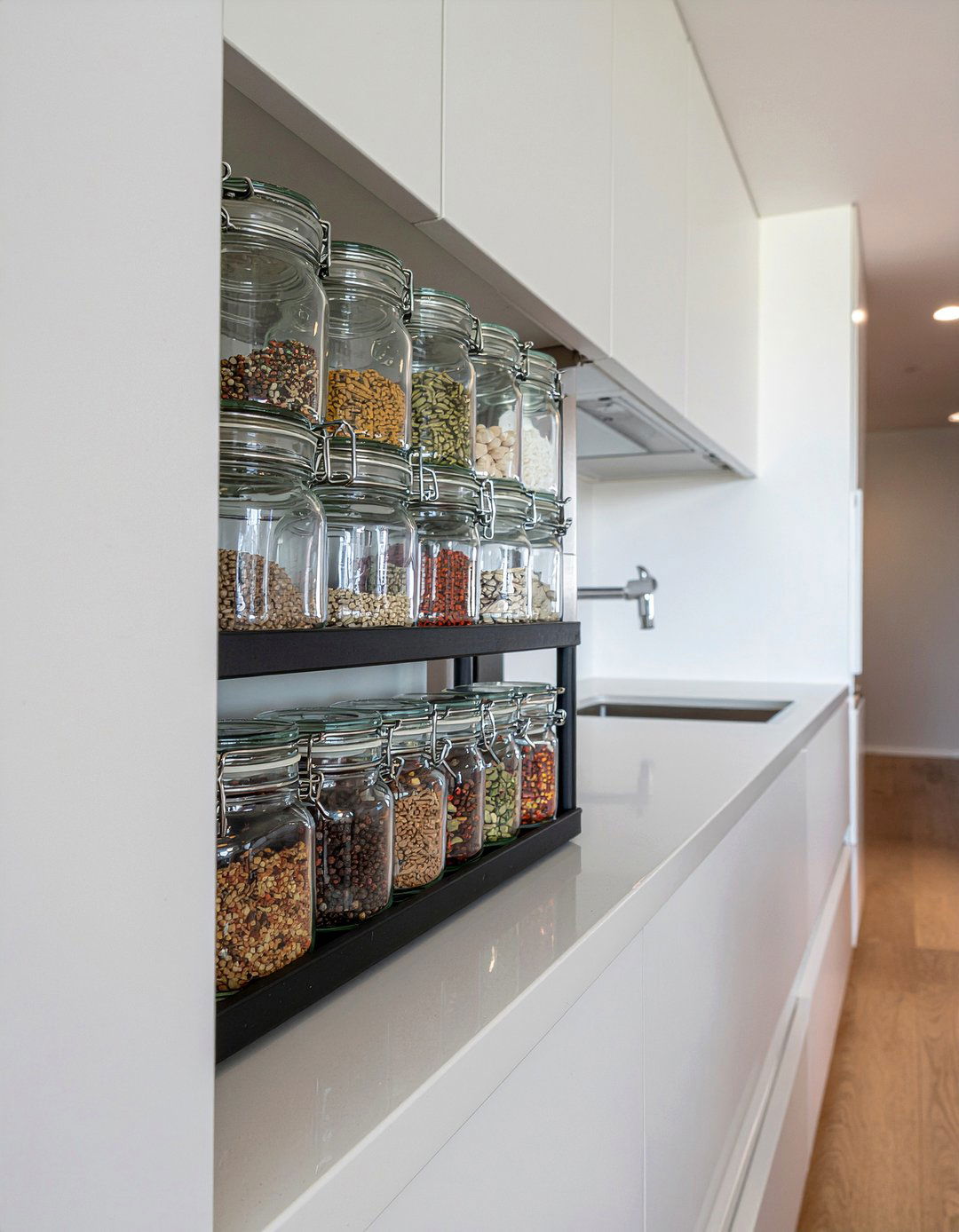

27. Spice rack cabinet width
A dedicated spice pull-out cabinet is a fantastic way to use small gaps in your cabinetry while keeping seasonings organized. These specialized cabinets are typically very narrow, ranging from 3 to 9 inches in width. Despite their slim profile, they are usually 24 inches deep, matching the standard base cabinets. Placing a spice pull-out directly next to the range or cooktop is the most logical choice for easy access while cooking. These dimensions allow you to turn a potentially wasted filler space into a highly functional storage solution that keeps your countertops clear of clutter and your most-used ingredients within an arm's reach at all times.

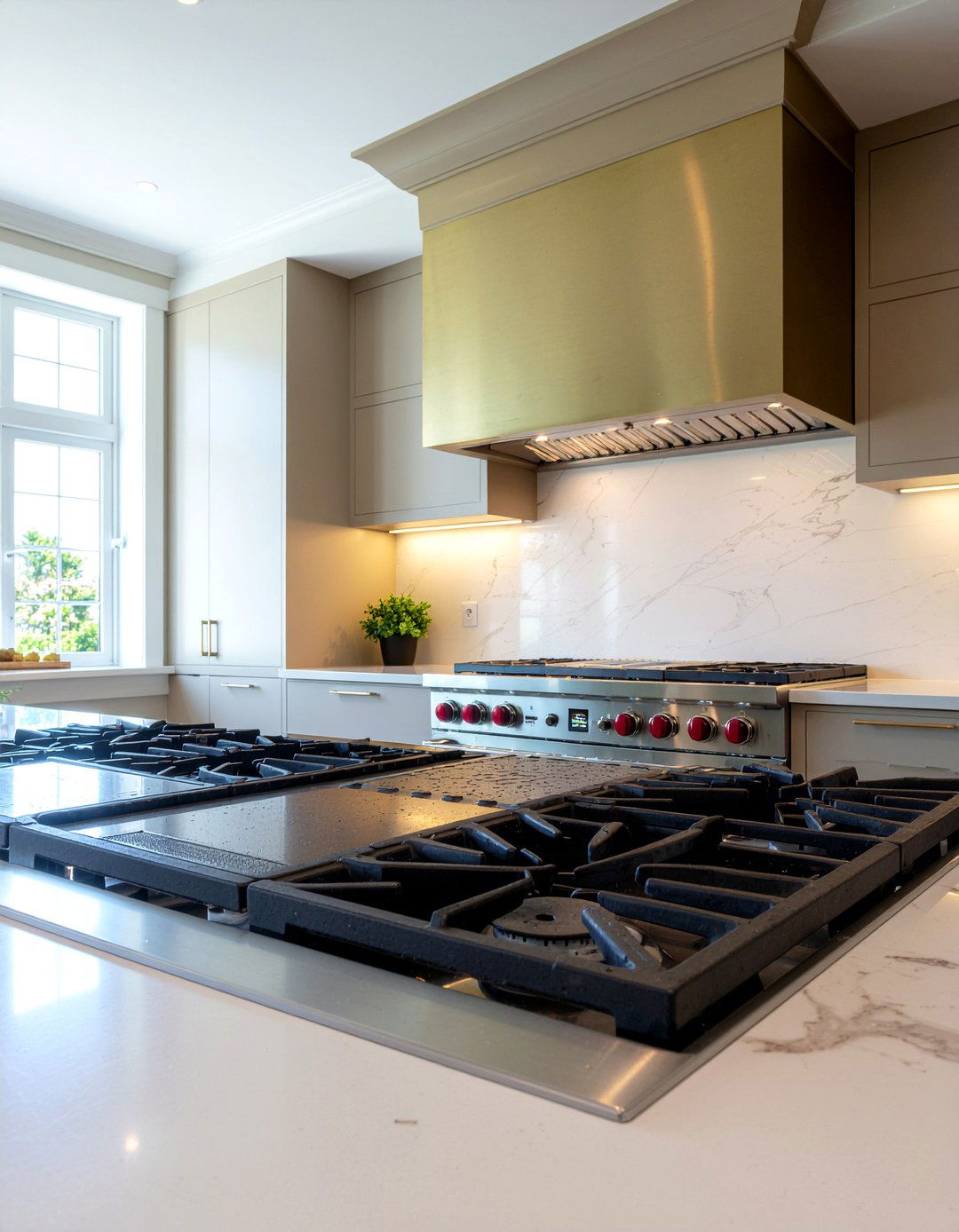

28. Pot filler height above range
Installing a pot filler faucet directly over your stove is a luxury that requires precise vertical dimensioning. The faucet should be mounted between 12 and 24 inches above the cooking surface. The exact height depends on the tallest pot you own; you want to ensure the faucet spout clears the rim of your largest stockpot with ease. Additionally, the faucet should be offset slightly from the center of the burners so it doesn't get too hot when not in use. Getting this dimension right prevents splashes and makes filling heavy pots with water much easier, saving you from carrying them from the sink to the stove.
29. Kitchen lighting fixture height
The height at which you hang your pendant lights over an island or dining table affects both the light quality and the visual flow of the room. Generally, pendant lights should hang 30 to 36 inches above the countertop surface. This height ensures that the light source is low enough to provide task lighting but high enough so that it doesn't block your view across the room or hit you in the head. If you have particularly high ceilings, you might lean toward the 36-inch mark. Consistent spacing between multiple pendants, usually 24 to 30 inches apart, ensures even illumination and a balanced, professional look.

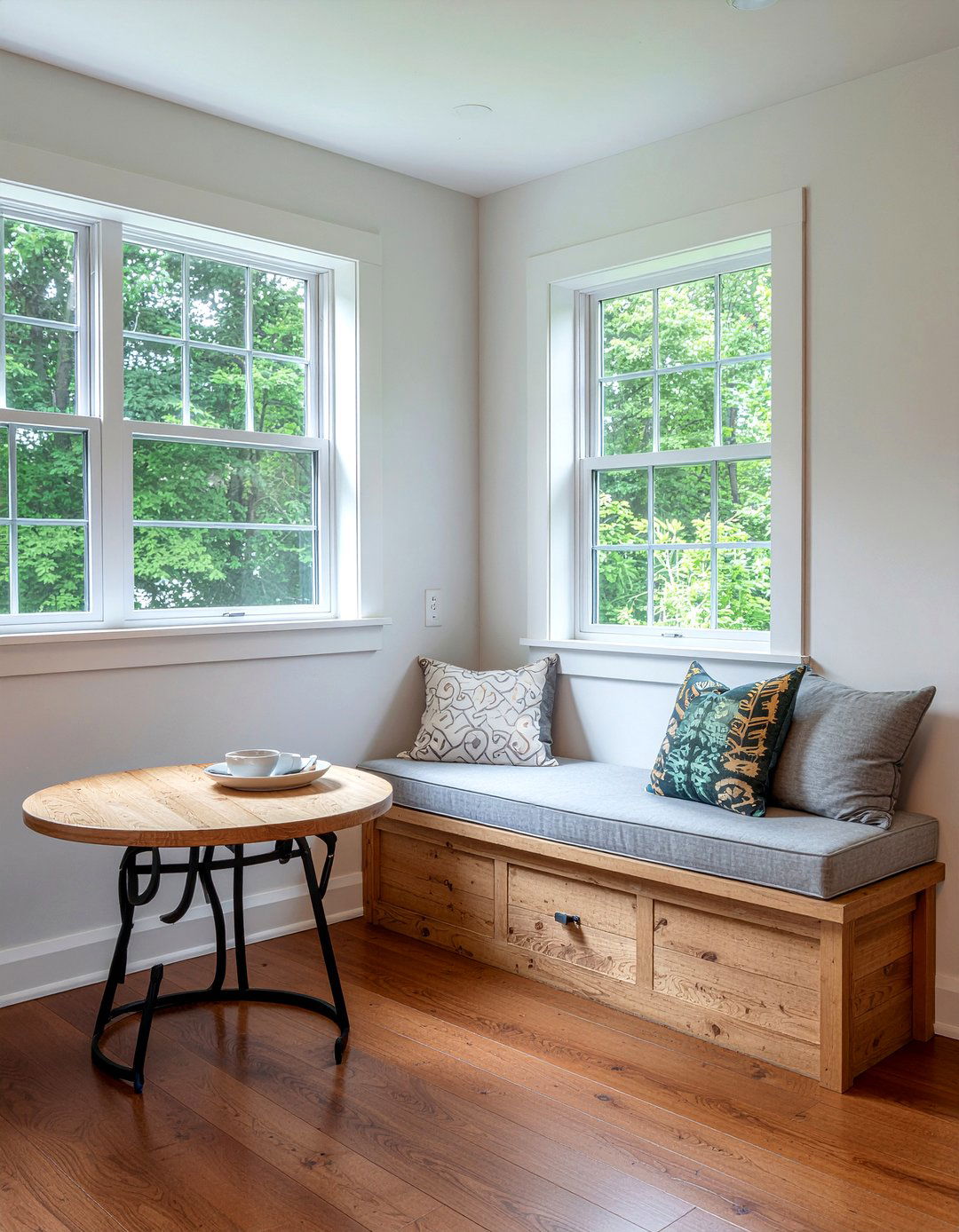

30. Breakfast nook bench dimensions
A built-in breakfast nook adds a cozy, custom feel to any kitchen, but the bench dimensions must be ergonomic for comfortable dining. A standard dining bench should have a seat height of 18 inches from the floor. The seat depth should be between 18 and 20 inches to provide adequate support for your thighs. If the bench has a backrest, it should lean back slightly at a 5 to 10-degree angle for comfort. The table should overlap the bench by about 3 to 4 inches so you don't have to lean forward too far to eat. These dimensions ensure your nook is a comfortable place for morning coffee.
Conclusion:
Mastering kitchen dimensions is the secret to creating a space that feels as good as it looks. By adhering to these standard measurements for cabinetry, clearances, and appliance placement, you eliminate the guesswork and potential errors that often plague DIY renovations. A well-measured kitchen maximizes efficiency, enhances safety, and ensures that every task—from a quick morning coffee to a large holiday dinner—is performed with ease. While customization is always an option, these industry-proven dimensions provide a reliable foundation for any home. Investing the time to plan your layout with precision will pay off in the long run, resulting in a beautiful, high-functioning kitchen that serves your needs perfectly.
